Description
| MECHANICAL | |

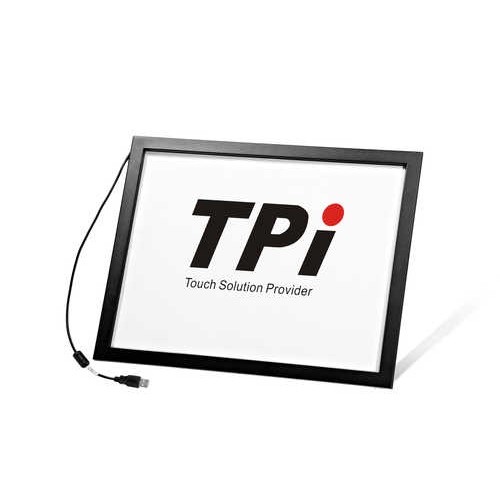

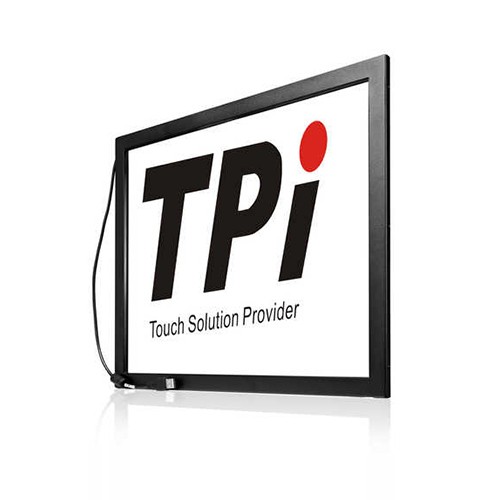

| P/N | AL Series IR Touch screen |
| Overlay Thickness | 8 mm |
| Glass thickness | 3mm vandal proof glass ( Without glass optional ) |

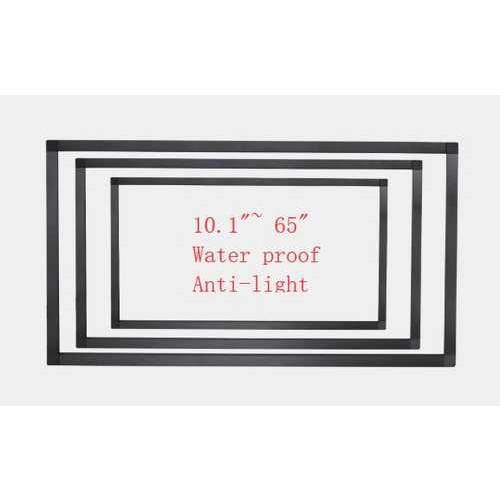

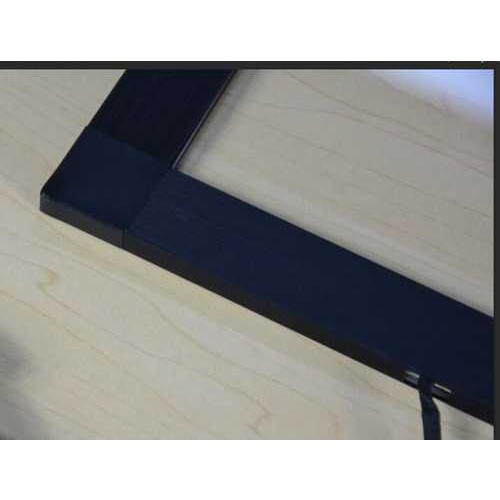

| Housing | Aluminum frame |
| TOUCH CHARACTERISTICS | |
| Input Method | Finger or touch pen |
| Touch Points | single touch , 2points , 4points , 6points and more |
| Touch Activation Force | Non Minimum activation force |
| Position Accuracy | 1mm |
| Resolution | 4096(W)×4096(D) |
| Response Time | Touch: 6ms |
| Drawing : 6ms | |
| Cursor Speed | 120 dot/sec |
| Glass | 3mm glass Transparency : 92% |
| Object Touch Size | ≥ Ø5mm |
| Touch Intensity | Over 60 millions single touch |
| ELECTRICAL | |
| Operating Voltage | DC 4.5V ~ DC 5.5V |
| Power | 1.0W (100mA at DC 5V) |
|
Anti -Static Discharge (Standard :B) |
Touch Discharge,Grade 2:Lab Vol 4KV |
| Air Discharge,Grade 3:Lab Vol 8KV | |
| ENVIRONMENT | |
| Temperature | operating:-10 °C ~ 60 °C |
| storage:-30°C ~ 70 °C | |
| Humidity | operating:20% ~85% |
| storage:0%~95% | |
| Relative Humidity | 40 °C,90% RH |
| Anti - glare Test |
Incandescent lamp (220V,100W) , operating distance over 350mm |
| Altitude | 3,000m |
| Interface | USB2.0 full speed |
| Seal Ability | IP64 Anti-Spill (Customizable to IP65 Waterproof) |
| Working Environment | Directly Under sunlight ,indoor and outdoor |
| Application of Display | Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks |
| Software(Firmware) | |
| Operate system | Windows 7,Windows 8,Windows 10, Andriod,Linux |
| Calibration | No need calibration , plug and play |
