Description
Model Number :TPC1013-V5GC

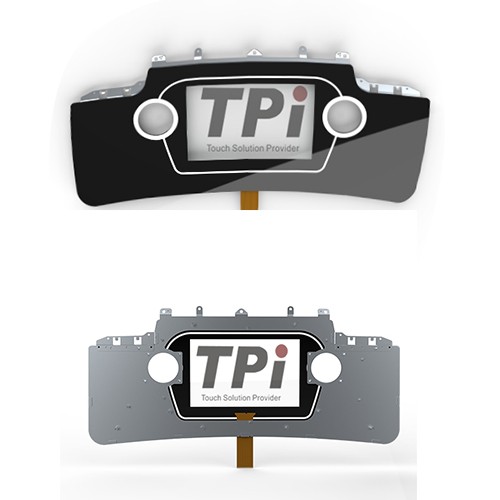

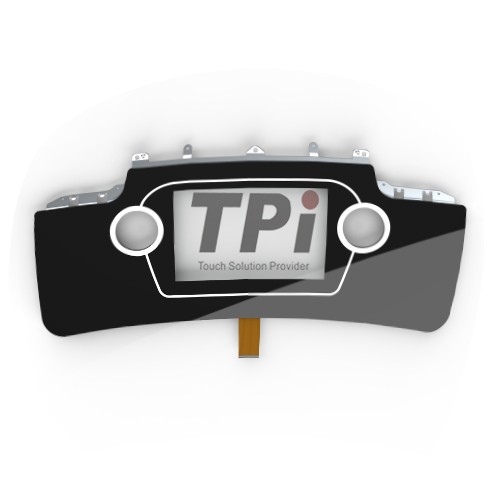

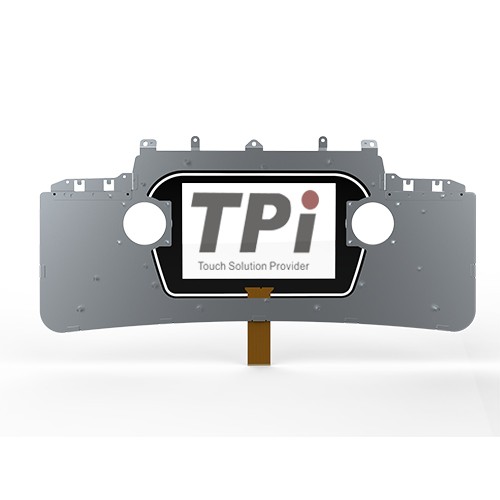

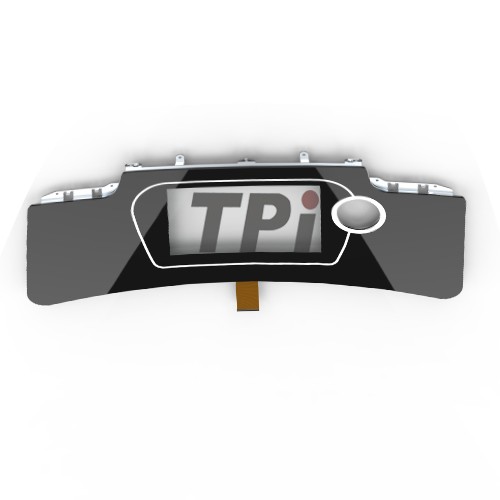

Button panel ideck touch for IGT Crystal Slant , Crystal Core models , each model with small difference , share us your model No. to get exactly one .
Our iDeck Touch screen with back Aluminium frame , Plug & Play , Easy work to save your time .
Technical parameters and characteristics：
Touch Technology
P-CAP
Touch Points
10Points（Max）
Touch Construction
G+G
Touch Cover
Glass T=1.8mm
Interface
USB-B Female RS232 DB9 Female
Luminousness
≥85%
Input Source
Finger
Touch Accuracy
2mm（Central）， 2. 5mm（Edge)
Response Speed
<10ms
Supports OS
windows xp/7 /8/10， Linux, Android, macOS
Technical Service
customize protocol for USB and RS232 interface
Firmware Upgrade
Supports Upgrade Firmware Via RS232 And USB Interface
